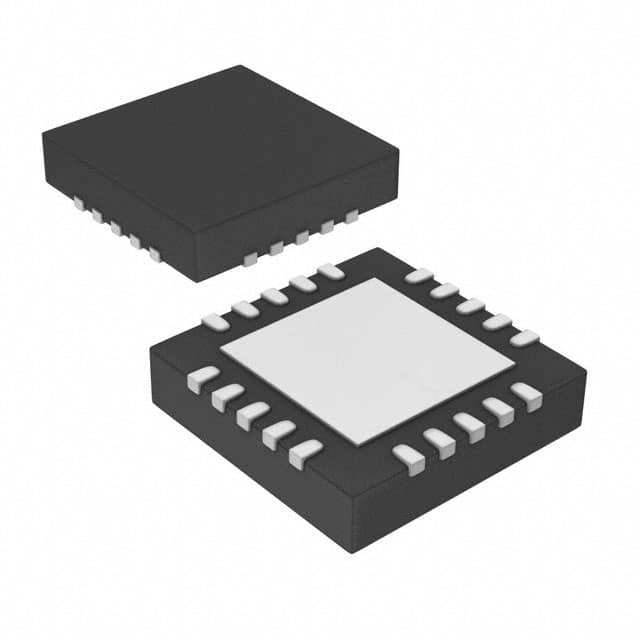

UCS1002-2-BP-TR

SKU: 121503

Manufacturer: Microchip Technology

USB Power Switch Dual 5.5V 0.48A/0.85A/0.95A/1.13A/1.4A/1.72A/1.91A/2.37A 20-Pin QFN EP T/R

40 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Type	USB Power Switch
Number of Switches	2
Current Limit (A)	0.48
Enable Logic	Active Low
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	5.5
Number of Outputs	2
Supply Current (mA)	0.65
Operating Supply Voltage Range (V)	4.5 to 5.5
Maximum Power Dissipation (mW)	2193
Switch On Resistance (mOhm)	5000
Typical UVLO Threshold (V)	2.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Typical Turn-On Delay Time (us)	750
Typical Turn-Off Delay Time (us)	750
Typical Propagation Delay Time (ns)	0.25
Typical Rise Time (us)	0.01
Typical Fall Time (us)	0.01
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	20
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	20
