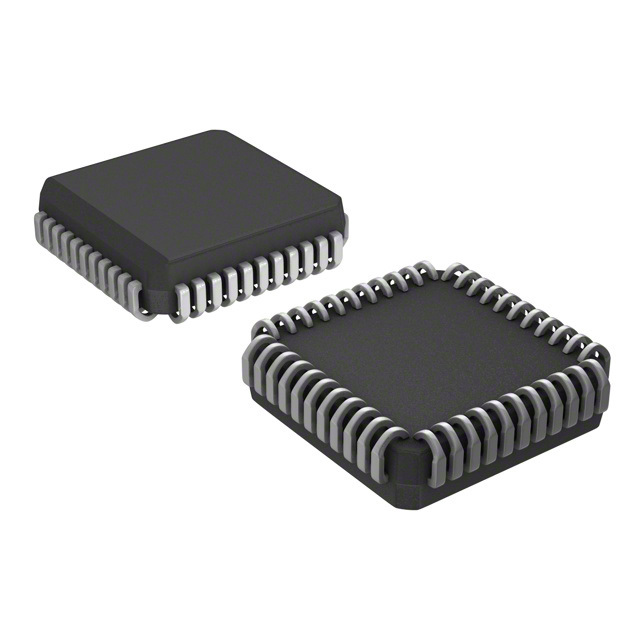

TSC80251G2D-24CB

SKU: 114276

Manufacturer: Microchip Technology

MCU 8-bit/16-bit C251 CISC ROMLess 5V 44-Pin PLCC

50 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	8x251
Instruction Set Architecture	CISC
Device Core	C251
Core Architecture	8051
Maximum CPU Frequency (MHz)	24
Maximum Clock Rate (MHz)	24
Data Bus Width (bit)	8
Program Memory Type	ROMless
RAM Size	1KB
Maximum Expanded Memory Size	256KB
Programmability	No
Interface Type	SPI/TWI/UART
Number of I/Os	32
No. of Timers	3
USART	0
UART	1
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Special Features	Programmable Counter Array
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	1500
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Original Package	PLCC
Pin Count	44
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.48(Max)
Package Length	16.7(Max)
Package Width	16.7(Max)
PCB changed	44
