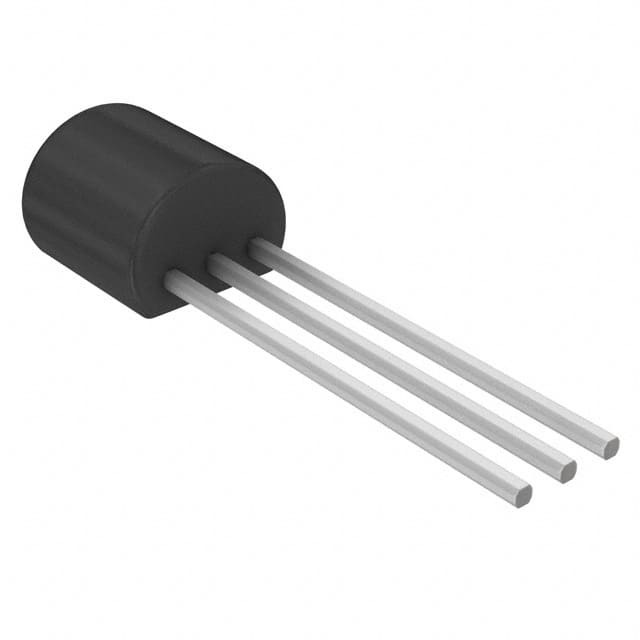

TN0604N3-G-P013

SKU: 59651

Manufacturer: Microchip Technology

Trans MOSFET N-CH Si 40V 0.7A 3-Pin TO-92 Ammo

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	1.6
Maximum Continuous Drain Current (A)	0.7
Maximum Drain Source Resistance (mOhm)	750@10V
Typical Input Capacitance @ Vds (pF)	140@20V
Typical Output Capacitance (pF)	75
Maximum Power Dissipation (mW)	740
Typical Fall Time (ns)	20(Max)
Typical Rise Time (ns)	6(Max)
Typical Turn-Off Delay Time (ns)	25(Max)
Typical Turn-On Delay Time (ns)	10(Max)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Ammo
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.21(Max)
Package Width	4.19(Max)
PCB changed	3
