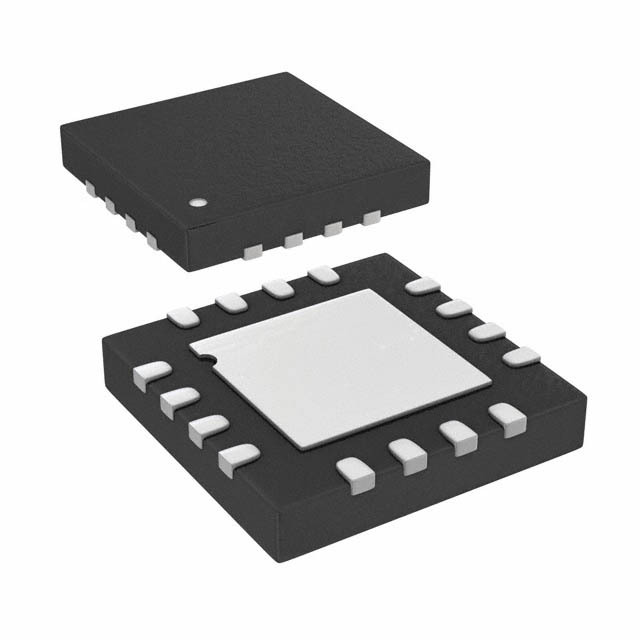

SY89841UMG

SKU: 108740

Manufacturer: Microchip Technology

Clock Multiplexer 1-OUT 2-IN 1:1 16-Pin QFN EP Tube

2410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Clock Multiplexer
Number of Outputs per Chip	1
Maximum Input Frequency (MHz)	2000(Typ)
Maximum Propagation Delay Time @ Maximum CL (ns)	0.87@2.375V to 2.625V
Absolute Propagation Delay Time (ns)	0.9
Input Logic Level	LVDS
Output Logic Level	LVDS
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	2.625
Maximum Quiescent Current (mA)	120
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	QFN EP
Pin Count	16
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	3
Package Width	3
