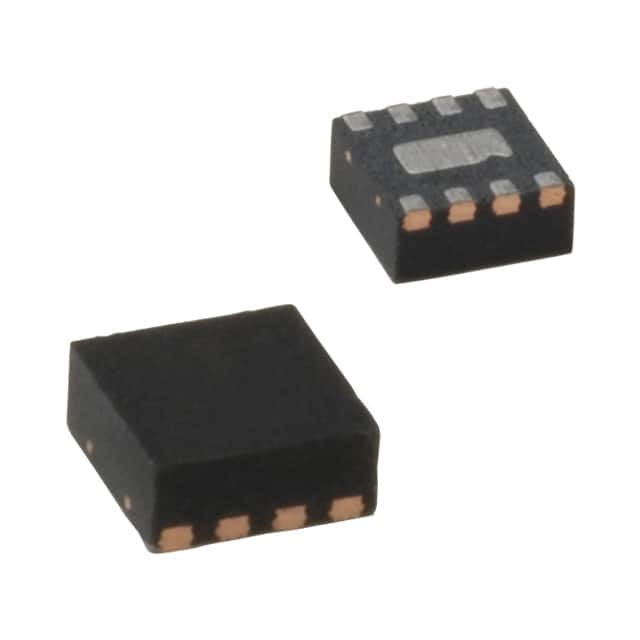

SY10EP51VMG-TR

SKU: 121008

Manufacturer: Microchip Technology

Flip Flop D-Master-Slave Type Pos-Edge/Neg-Edge 1-Element 8-Pin DFN EP T/R

500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.b
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	ECL
Logic Function	D-Master-Slave Type
Number of Channels per Chip	1
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Element Outputs	1
Bus Hold	No
Set/Reset	Reset
Polarity	Inverting/Non-Inverting
Triggering Type	Positive-Edge/Negative-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	0.37@3V to 5.5V
Absolute Propagation Delay Time (ns)	0.5
Process Technology	ECL
Input Signal Type	Single-Ended
Maximum Low Level Output Current (mA)	50
Maximum High Level Output Current (mA)	-50
Operating Supply Voltage-Min (V)	-3
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	-5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	2
Package Width	2
