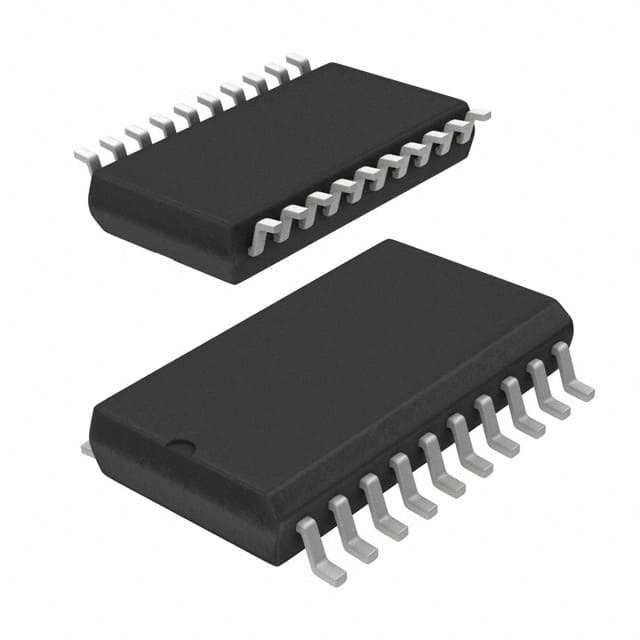

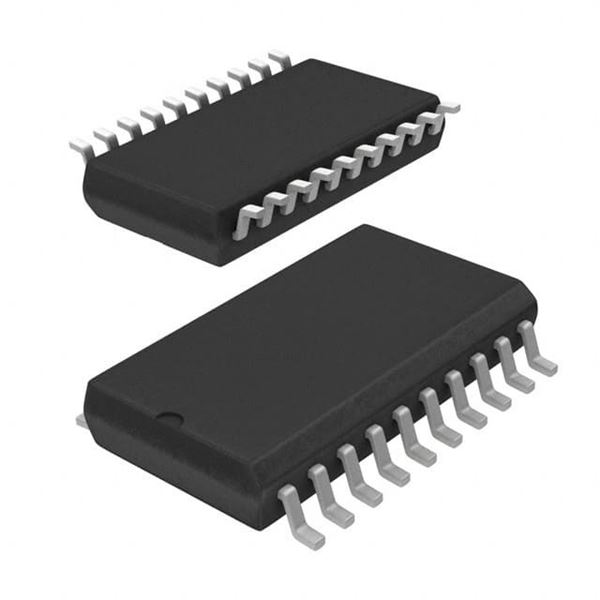

SY100EL56VZG-TR

SKU: 21877

Manufacturer: Microchip Technology

Multiplexer 1/2-Element ECL 4-IN 20-Pin SOIC W T/R

2290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.b.1
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	ECL
Logic Function	Multiplexer
Number of Elements per pcs	1
Number of Inputs per Chip	4
Number of Input Enables per Element	0
Number of Selection Inputs per Element	3
Number of Outputs per Chip	2
Number of Output Enables per Element	0
Polarity	Inverting/Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	0.61@-3V to -5.5V
Absolute Propagation Delay Time (ns)	0.75
Process Technology	ECL
Input Signal Type	Differential
Parity Invert Input	No
Output Signal Type	Differential
Maximum Low Level Output Current (mA)	50
Maximum High Level Output Current (mA)	-50
Operating Supply Voltage-Min (V)	-5.5
Typical Operating Supply Voltage (V)	-3.3
Operating Supply Voltage-Max (V)	-3
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	20
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.26
Package Length	12.83
Package Width	7.52
PCB changed	20
