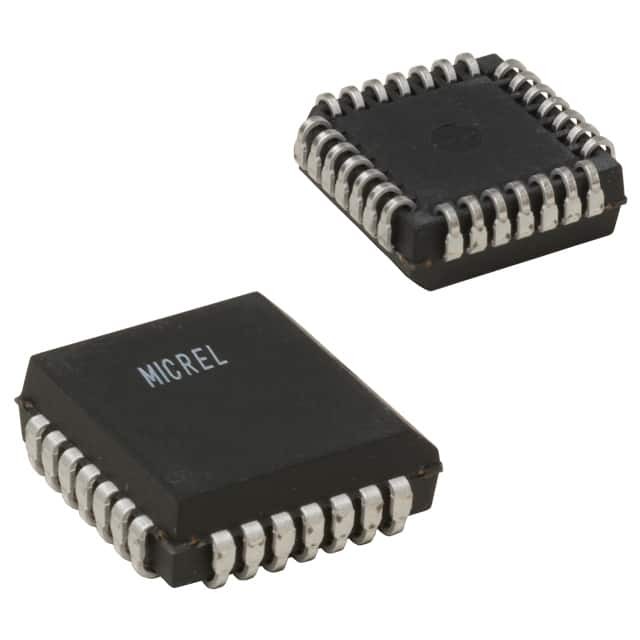

SY100E107JZ Microchip Technology

SY100E107JZ

SKU: 101715

Manufacturer: Microchip Technology

XOR/XNOR Gate 5-Element 2-IN ECL 28-Pin PLCC

Download sample

Request Free Samples

2200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Logic Family	ECL
Logic Function	XOR/XNOR
Number of Elements per pcs	5
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	2-OP Plus Two Function
Maximum Propagation Delay Time @ Maximum CL (ns)	1@-4.2V to -5.5V
Absolute Propagation Delay Time (ns)	1
Process Technology	ECL
Operating Supply Voltage-Min (V)	-5.5
Typical Operating Supply Voltage (V)	-5
Operating Supply Voltage-Max (V)	-4.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Original Package	PLCC
Pin Count	28
Terminal Form	Surface Mount
Package Height	3.68(Min)
Package Length	11.48
Package Width	11.48
