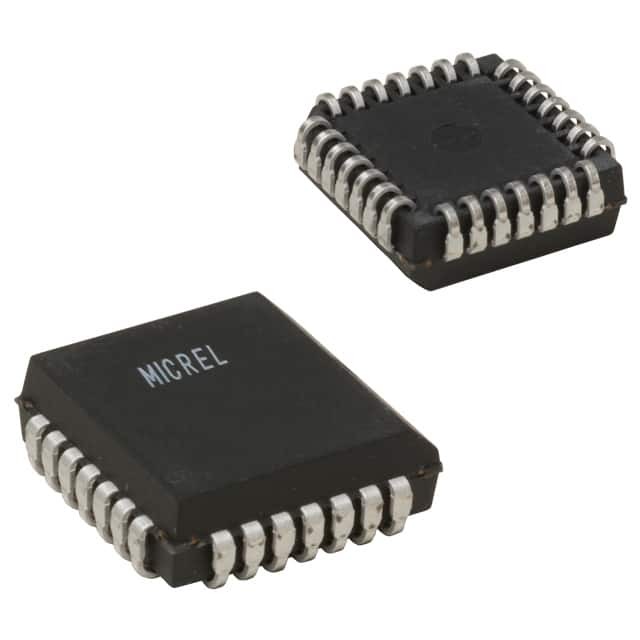

    SY100E104JY-TR

    SKU: 21872
    Manufacturer: Microchip Technology
    AND/NAND Gate 5-Element 2-IN ECL 28-Pin PLCC T/R
    Download sample
    Request Free Samples
    4520 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    Automotive No
    PPAP No
    Logic Family ECL
    Logic Function AND/NAND
    Number of Elements per pcs 5
    Number of Element Inputs 2-IN
    Number of Output Enables per Element 0
    Number of Selection Inputs per Element 0
    Number of Element Outputs 2-OP Plus Two Function
    Maximum Propagation Delay Time @ Maximum CL (ns) 1@-4.2V to -5.5V
    Absolute Propagation Delay Time (ns) 1
    Process Technology ECL
    Operating Supply Voltage-Min (V) -5.5
    Typical Operating Supply Voltage (V) -5
    Operating Supply Voltage-Max (V) -4.2
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Supplier Temperature Grade Industrial
    Packing Method Tape and Reel
    Original Package PLCC
    Pin Count 28
    Terminal Form Surface Mount
    Package Height 3.68(Min)
    Package Length 11.48
    Package Width 11.48
