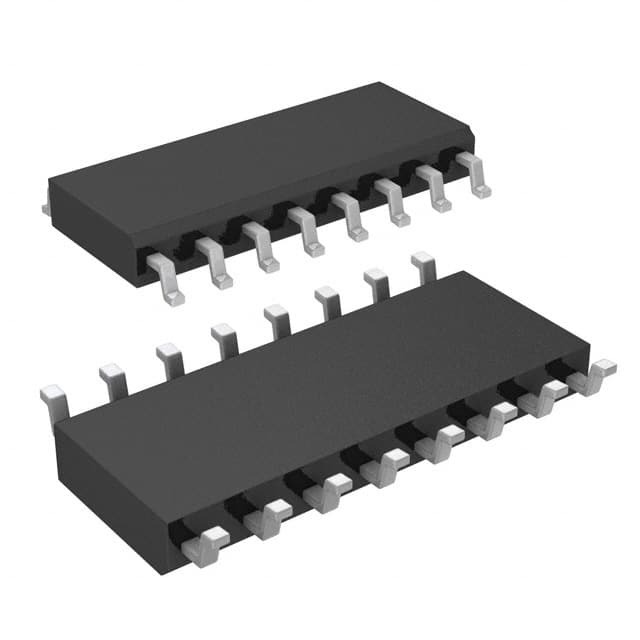

SM1612C/TR13

SKU: 66366

Manufacturer: Microchip Technology

ESD Suppressor Diode TVS Bi-Dir 12V 16-Pin SOIC T/R

2370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Octal
Direction Type	Bi-Directional
Number of Elements per pcs	8
Maximum Working Voltage (V)	12
Minimum Breakdown Voltage (V)	13.3
Maximum Clamping Voltage (V)	24
Maximum Peak Pulse Current (A)	5
Maximum Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	300
Capacitance Value (pF)	220(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOIC
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	10.01(Max)
Package Width	4.01(Max)
PCB changed	16
