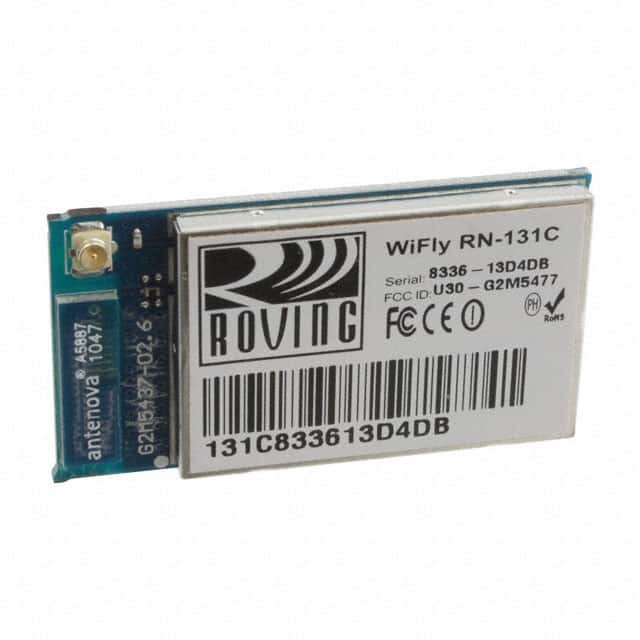

RN131C/RM

SKU: 151247

Manufacturer: Microchip Technology

Module 802.11b/g 2.48GHz 1000Kbps 44-Pin SMD Tray

2430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8517.62.00.90
Automotive	No
PPAP	No
Technology	IEEE 802.11b/g
Style	Module
Modulation Technique	DBPSK
Solutions	ISM
Number of Channels	14
Maximum Data Rate (Kbps)	1000
Band Mode	Single Mode
Minimum Operating Frequency (MHz)	2402
Maximum Operating Frequency (MHz)	2480
ISM Band	2.4GHz
Typical Sensitivity	-85dBm
Interface	GPIO/SPI/UART
Maximum Output Power	18dBm
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.7
Maximum Current Consumption (TX) (mA)	212
Maximum Current Consumption (RX) (mA)	40(Typ)
Processing Unit Type	Microprocessor
Antenna Terminal Form	External/On Board
Wi-Fi Compliant	Yes
Wi-Fi Direct	No
Security	128bit WEP/AES/TKIP/WPA-PSK/WPA2-PSK/WPS
Operation Mode	Ad-Hoc
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Standard Package Method	SMD
Original Package	SMD
Pin Count	44
Terminal Form	Surface Mount
Package Height	3.5
Package Length	37
Package Width	20
PCB changed	44
