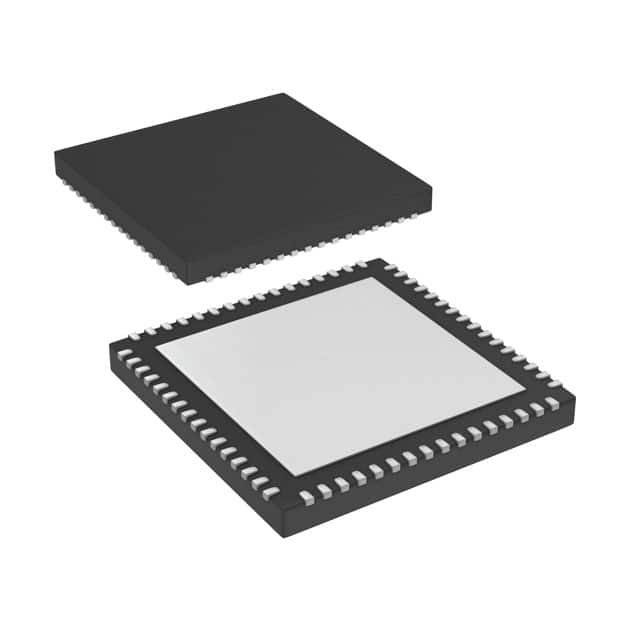

PIC32MZ2048EFG064-I/MR

SKU: 42315

Manufacturer: Microchip Technology

Secure MCU 32bit PIC32 PIC RISC 2MB Flash 3.3V Automotive 64-Pin QFN EP Tube

750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	PIC32
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	200
Maximum Clock Rate (MHz)	200
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	2MB
RAM Size	512KB
Minimum Endurance (Cycles)	20000
Programmability	Yes
Key Size	128bit@AES/192bit@AES/256bit@AES
Number of I/Os	46
No. of Timers	9
PWM	1
Number of ADCs	Single
ADC Channels	24
ADC Resolution (bit)	12
Interface Type	Ethernet/I2C/I2S/SPI/UART/USB
UART	6
USB	1
SPI	4
I2C	4
I2S	4
CAN	0
Ethernet	1
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.1
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	QFN EP
Pin Count	64
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.83
Package Length	9
Package Width	9
PCB changed	64
