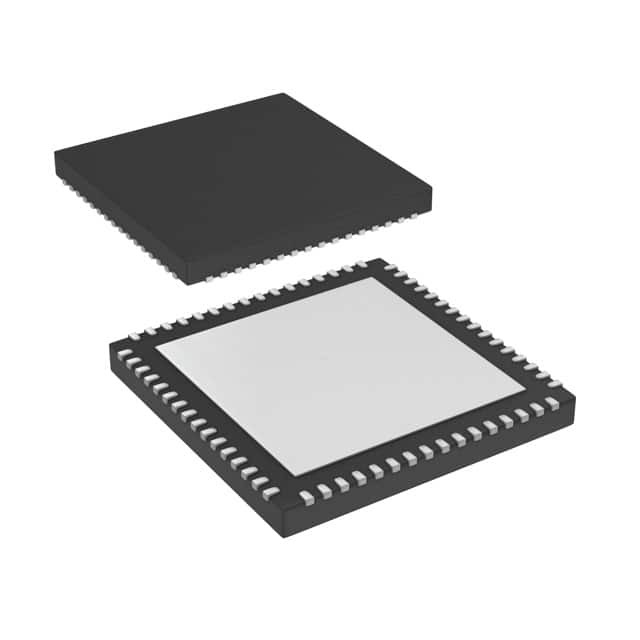

PIC32MZ0512EFE064T-I/MR

SKU: 155586

Manufacturer: Microchip Technology

Secure MCU 32bit PIC32 PIC RISC 512KB Flash 3.3V Automotive 64-Pin QFN EP T/R

3050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
Automotive	Yes
PPAP	Unknown
Family Name	PIC32
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	200
Maximum Clock Rate (MHz)	200
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	128KB
Minimum Endurance (Cycles)	20000
Key Size	128bit@AES/192bit@AES/256bit@AES
Number of I/Os	46
No. of Timers	9
Number of ADCs	Single
ADC Channels	24
ADC Resolution (bit)	12
Interface Type	Ethernet/I2C/I2S/SPI/UART/USB
UART	6
USB	1
SPI	4
I2C	4
I2S	4
CAN	0
Ethernet	1
Operating Supply Voltage-Min (V)	2.1
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	64
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.83
Package Length	9
Package Width	9
PCB changed	64
