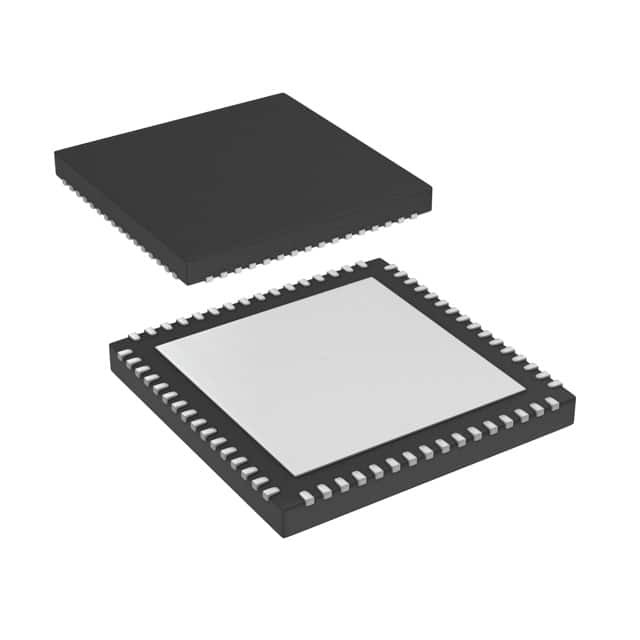

PIC32MX550F256H-V/MR

SKU: 77516

Manufacturer: Microchip Technology

MCU 32-bit MIPS32 M4K RISC 256KB Flash 2.5V/3.3V Automotive 64-Pin QFN EP Tube

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	PIC32
Instruction Set Architecture	RISC
Device Core	MIPS32 M4K
Core Architecture	PIC
Maximum CPU Frequency (MHz)	40
Maximum Clock Rate (MHz)	40
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	32KB
Maximum Expanded Memory Size	4GB
Programmability	Yes
Interface Type	CAN/I2C/SPI/UART/USB
Number of I/Os	49
No. of Timers	5
Timers Resolution (bit)	16/16/16/16/16
PWM	1
Number of ADCs	Single
ADC Channels	28
ADC Resolution (bit)	10
USART	0
UART	4
USB	1
SPI	3
I2C	2
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	Yes
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	2.3
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	64
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.88
Package Length	9
Package Width	9
PCB changed	64
