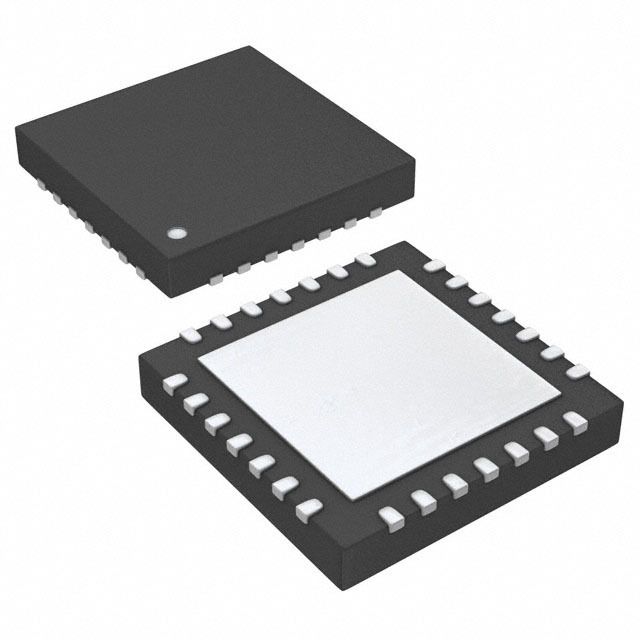

PIC32MM0064GPL028-I/ML

SKU: 94417

Manufacturer: Microchip Technology

MCU 32-bit PIC RISC 64KB Flash 2.5V/3.3V 28-Pin QFN EP Tube

3270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	PIC32
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	8KB
Maximum Expanded Memory Size	4GB
Programmability	Yes
Interface Type	UART/SPI/I2S
Number of I/Os	22
No. of Timers	1
Timers Resolution (bit)	16
PWM	6
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	10
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	5
USART	0
UART	2
USB	0
SPI	2
I2C	0
I2S	2
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	QFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	6
Package Width	6
PCB changed	28
