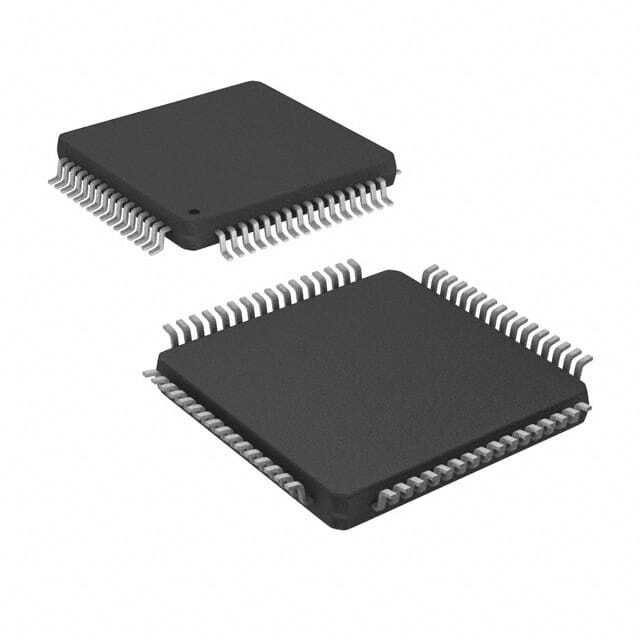

PIC32MK1024GPE064-I/PT

SKU: 137028

Manufacturer: Microchip Technology

MCU 32-bit PIC RISC 1MB Flash 2.5V/3.3V 64-Pin TQFP Tray

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	NRND
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	PIC32
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	120
Maximum Clock Rate (MHz)	120
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1MB
RAM Size	256KB
Maximum Expanded Memory Size	4GB
Programmability	Yes
Interface Type	CAN/I2C/I2S/SPI/UART/USB
Number of I/Os	48
No. of Timers	9
Number of ADCs	Single
ADC Channels	26
ADC Resolution (bit)	12
Number of DACs	Single
DAC Resolution (bit)	12
USART	0
UART	6
USB	1
SPI	6
I2C	4
I2S	6
CAN	4
Ethernet	0
Analog Comparators	5
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	TQFP
Pin Count	64
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	10
Package Width	10
PCB changed	64
