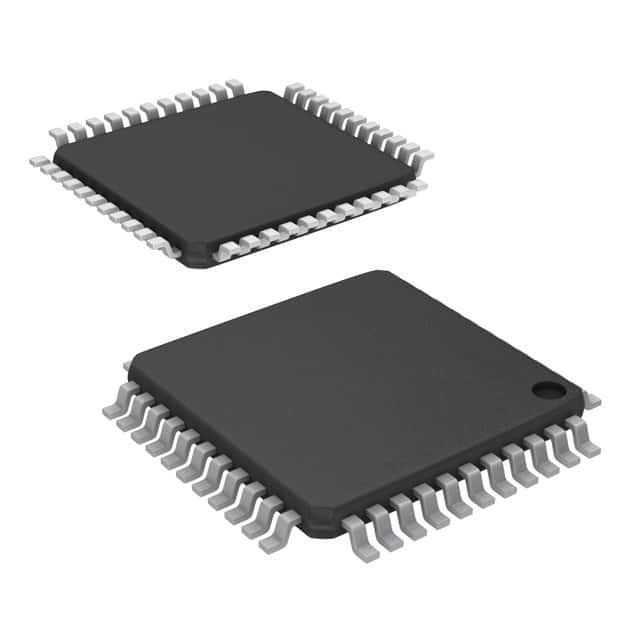

PIC24FJ64GA004-E/PT

SKU: 73272

Manufacturer: Microchip Technology

MCU 16-bit PIC RISC 64KB Flash 2.5V/3.3V Automotive 44-Pin TQFP Tray

3070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	Unknown
PPAP	Unknown
Family Name	PIC24
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	8KB
Maximum Expanded Memory Size	12MB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	35
No. of Timers	5
PWM	5
Number of ADCs	Single
ADC Channels	13
ADC Resolution (bit)	10
USART	0
UART	2
USB	0
SPI	2
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tray
Original Package	TQFP
Pin Count	44
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	10
Package Width	10
PCB changed	44
