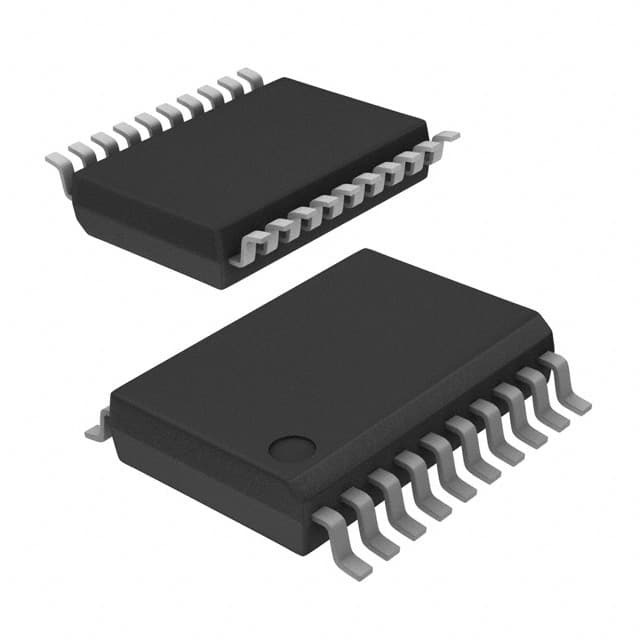

PIC24FJ16MC101-E/SS

SKU: 91716

Manufacturer: Microchip Technology

MCU 16-bit PIC RISC 16KB Flash 3.3V Automotive 20-Pin SSOP Tube

3150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Yes
Family Name	PIC24
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	16KB
RAM Size	1KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	15
No. of Timers	3
PWM	1
Number of ADCs	Single
ADC Channels	4
ADC Resolution (bit)	10
LCD Segments	8192
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	3
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	1.75
Package Length	7.2
Package Width	5.3
PCB changed	20
