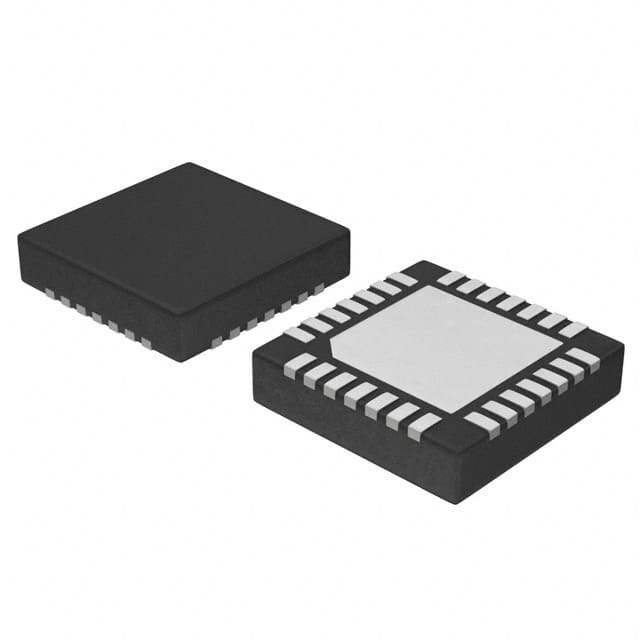

PIC24EP128GP202-E/MM

SKU: 35175

Manufacturer: Microchip Technology

MCU 16-bit PIC RISC 128KB Flash 3.3V Automotive 28-Pin QFN-S EP Tube

3000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Yes
Family Name	PIC24
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	60
Maximum Clock Rate (MHz)	60
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	16KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	21
No. of Timers	5
PWM	6
Number of ADCs	Single
ADC Channels	6
ADC Resolution (bit)	12
USART	0
UART	2
USB	0
SPI	2
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	28
Standard Package Method	QFN
Original Package	QFN-S EP
Terminal Form	Surface Mount
Package Height	0.88
Package Length	6
Package Width	6
PCB changed	28
