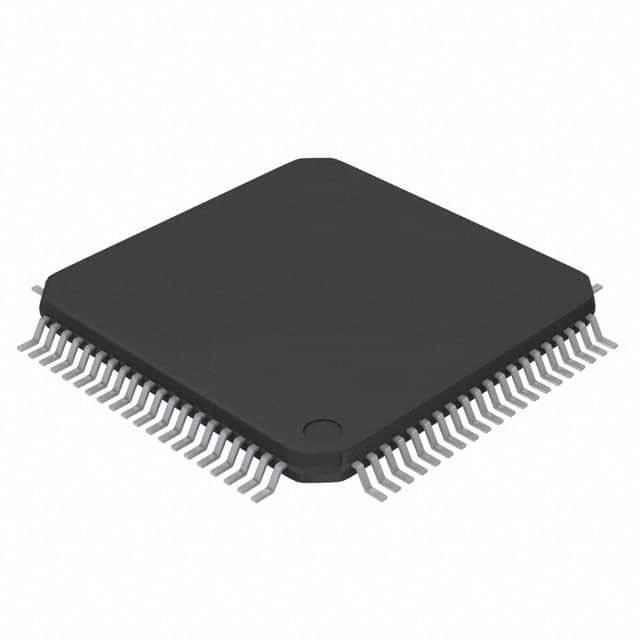

PIC18F86K90T-I/PT

SKU: 141405

Manufacturer: Microchip Technology

MCU 8-bit PIC RISC 64KB Flash 2.5V/3.3V/5V Automotive 80-Pin TQFP T/R

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
Automotive	Yes
PPAP	Yes
Family Name	PIC18
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	64
Maximum Clock Rate (MHz)	64
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	4KB
Maximum Expanded Memory Size	2MB
Programmability	Yes
Interface Type	I2C/SPI/USART
Number of I/Os	69
No. of Timers	11
PWM	10
Number of ADCs	Single
ADC Channels	24
ADC Resolution (bit)	12
LCD Segments	192
USART	2
UART	0
USB	0
SPI	2
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	3
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	80
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1
Package Length	12
Package Width	12
PCB changed	80
