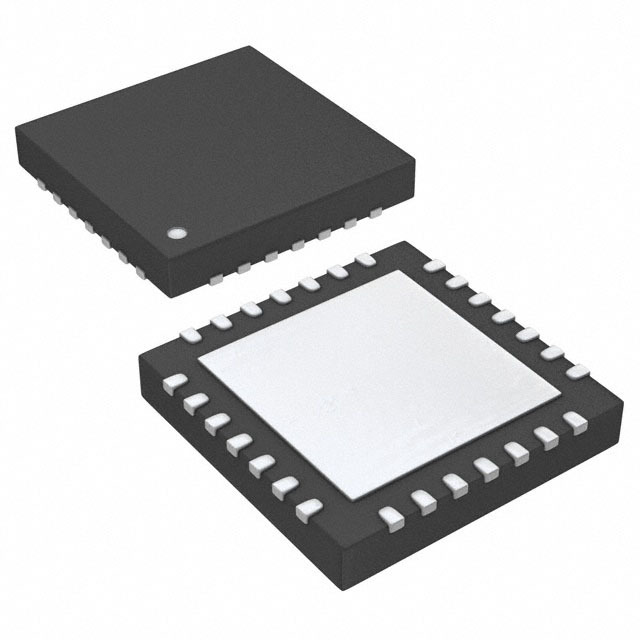

PIC18F25K50-E/ML

SKU: 63580

Manufacturer: Microchip Technology

MCU 8-bit PIC RISC 32KB Flash 2.5V/3.3V/5V Automotive 28-Pin QFN EP Tube

3590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Family Name	PIC18
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	48
Maximum Clock Rate (MHz)	48
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	2KB
Programmability	Yes
Process Technology	CMOS
Interface Type	I2C/SPI/USART/USB
Number of I/Os	25
No. of Timers	4
PWM	2
Number of ADCs	Single
ADC Channels	14
ADC Resolution (bit)	10
USART	1
UART	0
USB	1
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.3
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	QFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	6
Package Width	6
PCB changed	28
