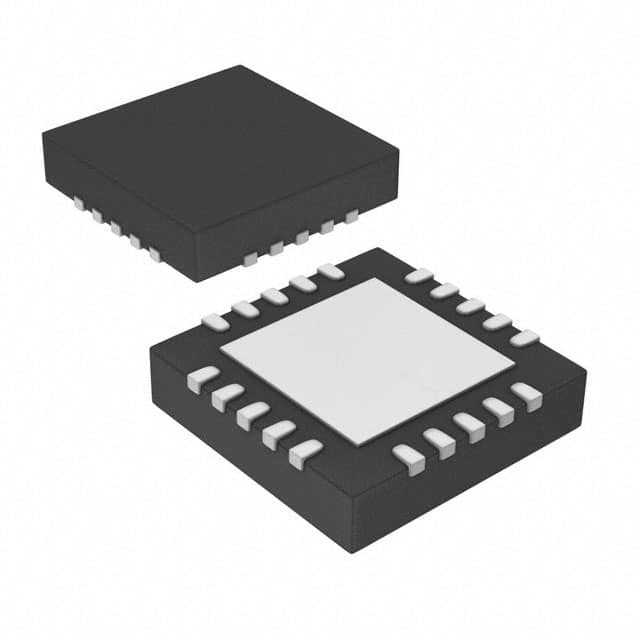

PIC16LF1559-I/ML

SKU: 77478

Manufacturer: Microchip Technology

MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V Automotive 20-Pin QFN EP Tube

1570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
Automotive	Unknown
PPAP	Unknown
Family Name	PIC16
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	14KB
RAM Size	512B
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	18
No. of Timers	3
Timers Resolution (bit)	8/8/16
PWM	2
Number of ADCs	Dual
ADC Channels	17/17
ADC Resolution (bit)	10/10
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	800
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	QFN EP
Pin Count	20
Terminal Form	Surface Mount
Package Height	0.88
Package Length	4
Package Width	4
