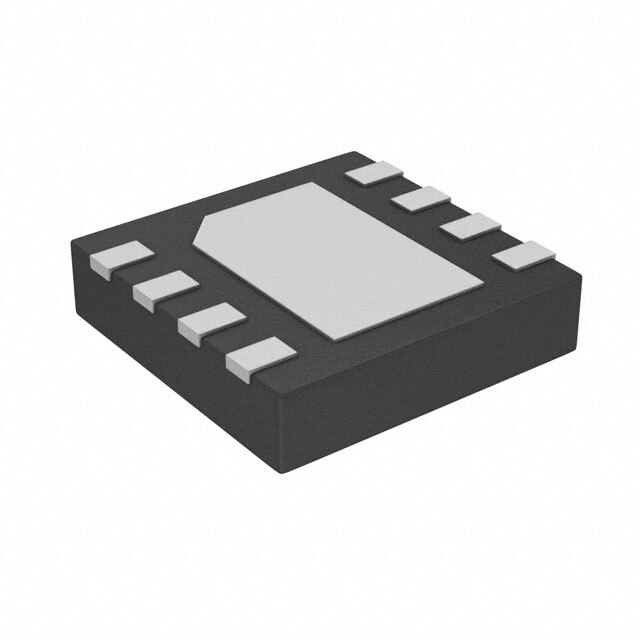

PIC12LF1822-E/MF

SKU: 112909

Manufacturer: Microchip Technology

MCU 8-bit PIC RISC 3.5KB Flash 3.3V Automotive 8-Pin DFN EP Tube

3440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	PIC12
Instruction Set Architecture	RISC
Device Core	PIC
Core Architecture	PIC
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	3.5KB
RAM Size	128B
Maximum Expanded Memory Size	56KB
Programmability	Yes
Interface Type	I2C/SPI/USART
Number of I/Os	6
No. of Timers	3
PWM	1
Number of ADCs	Single
ADC Channels	4
ADC Resolution (bit)	10
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	5
USART	1
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.5
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	800
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	DFN EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.88
Package Length	3
Package Width	3
