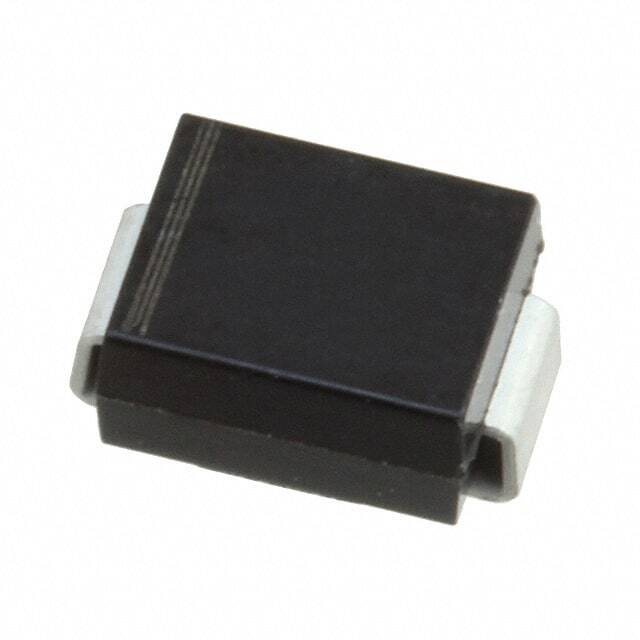

MSMBJ6.5A

SKU: 91397

Manufacturer: Microchip Technology

TVS Diode Single Uni-Dir 6.5V 600W 2-Pin SMB Bag

3720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	7.22
Maximum Clamping Voltage (V)	11.2
Maximum Reverse Stand-Off Voltage (V)	6.5
Peak Forward Surge Current (A)	100
Maximum Peak Pulse Current (A)	53.6
Maximum Reverse Leakage Current (uA)	500
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-65
Operating Temperature-Max	150
Supplier Temperature Grade	Military
Maximum Power Dissipation (mW)	1380
Product Weight (g)	0.1
Packing Method	Bag
Original Package	SMB
Pin Count	2
Standard Package Method	DO-214-AA
Terminal Form	Surface Mount
Package Length	4.57(Max)
Package Width	3.94(Max)
PCB changed	2
