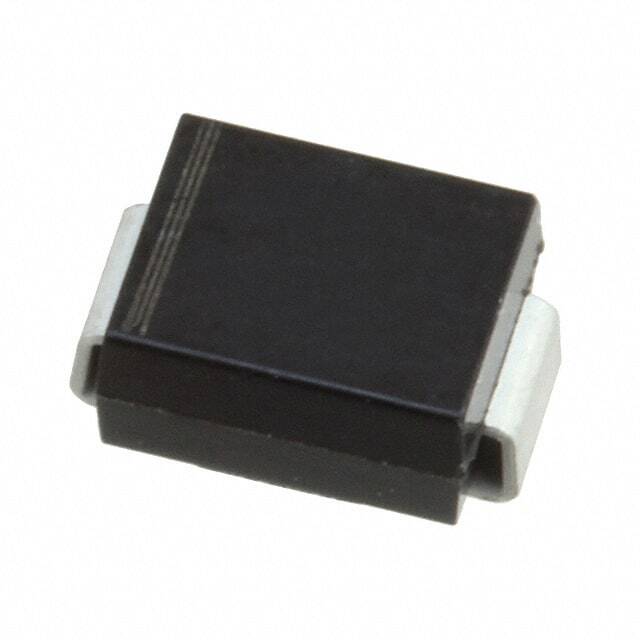

MSMBJ170AE3

SKU: 49141

Manufacturer: Microchip Technology

TVS Diode Single Uni-Dir 170V 600W 2-Pin SMB Bag

4000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	189
Maximum Clamping Voltage (V)	275
Maximum Reverse Stand-Off Voltage (V)	170
Peak Forward Surge Current (A)	100
Maximum Peak Pulse Current (A)	2.2
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-65
Operating Temperature-Max	150
Supplier Temperature Grade	Military
Maximum Power Dissipation (mW)	1380
Product Weight (g)	0.1
Packing Method	Bag
Original Package	SMB
Pin Count	2
Standard Package Method	DO-214-AA
Terminal Form	Surface Mount
Package Length	4.57(Max)
Package Width	3.94(Max)
PCB changed	2
