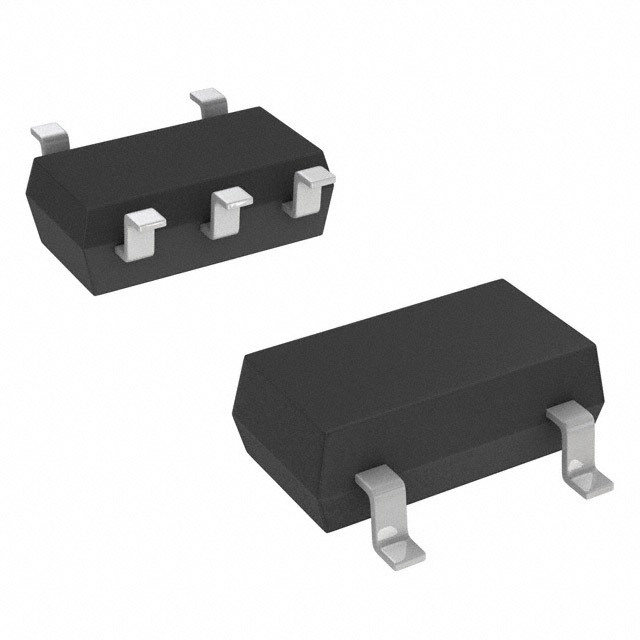

MIC920YC5-TR

SKU: 122720

Manufacturer: Microchip Technology

Op Amp Single High Speed Amplifier ±9V 5-Pin SC-70 T/R

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Speed Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	0.43(Typ)@±5V
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±9
Maximum Input Offset Current (uA)	0.04(Typ)@±5V
Typical Input Bias Current (uA)	0.26@±5V
Maximum Input Bias Current (uA)	0.6@±5V@-40C to 85C
Maximum Quiescent Current (mA)	0.55(Typ)@±5V
Power Supply Type	Dual
Typical Slew Rate (V/us)	1350@±5V
Typical Input Noise Voltage Density (nV/rtHz)	11000000000@±5V
Typical Voltage Gain (dB)	85
Typical Noninverting Input Current Noise Density (pA/rtHz)	700000000000@±5V
Minimum PSRR (dB)	104(Typ)
Minimum CMRR (dB)	85(Typ)
Minimum CMRR Range (dB)	85 to 90
Typical Gain Bandwidth Product (MHz)	67
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	5
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.25(Max)
Package Width	1.35(Max)
