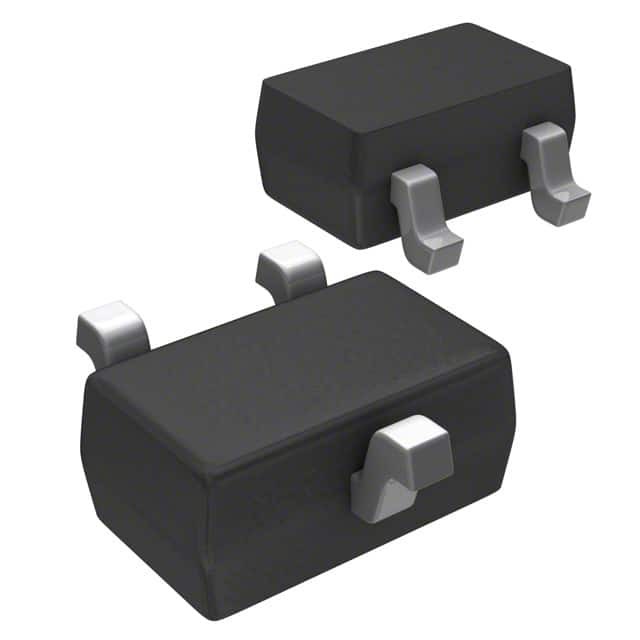

MIC803-29D3VC3-TR

SKU: 105454

Manufacturer: Microchip Technology

Processor Supervisor 2.93V 1 Active Low/Open Drain 3-Pin SC-70 T/R

10660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Supervisors	1
Maximum Reset Active Time (ms)	420
Output Driver	Active Low/Open Drain
Minimum Reset Threshold Voltage (V)	2.81
Typical Reset Threshold Voltage (V)	2.93
Maximum Reset Threshold Voltage (V)	3.05
Monitored Voltage (V)	1 to 5.5
Operating Supply Voltage-Min (V)	1
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (uA)	18
Power Fail Detection	No
Watchdog Timer	No
Manual Reset	No
Chip Enable Signals	No
Battery Backup Switching	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Type	Voltage Supervisory
Original Package	SC-70
Pin Count	3
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.25(Max)
Package Width	1.35(Max)
