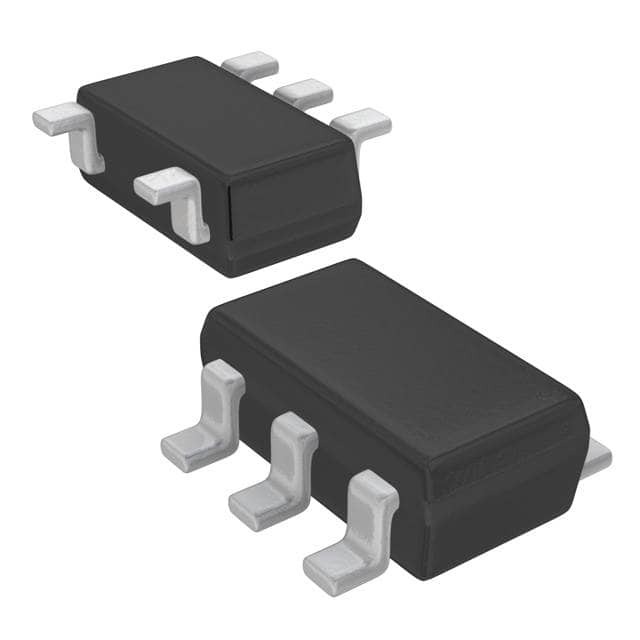

MIC7300YM5-TR

SKU: 155158

Manufacturer: Microchip Technology

Op Amp Single GP R-R I/O 10V 5-Pin SOT-23 T/R

1390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	9@5V
Minimum Single Supply Voltage (V)	2.2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	10
Maximum Input Offset Current (uA)	0.00000025(Typ)@5V
Typical Input Bias Current (uA)	0.0000005@5V
Maximum Supply Current (mA)	2.8@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.5@5V
Typical Input Noise Voltage Density (nV/rtHz)	37@10V
Typical Voltage Gain (dB)	110.63
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0015@10V
Minimum PSRR (dB)	55
Minimum CMRR (dB)	55
Minimum CMRR Range (dB)	50 to 60
Typical Gain Bandwidth Product (MHz)	0.4
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
