MIC5353-2.8YMT-TR

SKU: 94307

Manufacturer: Microchip Technology

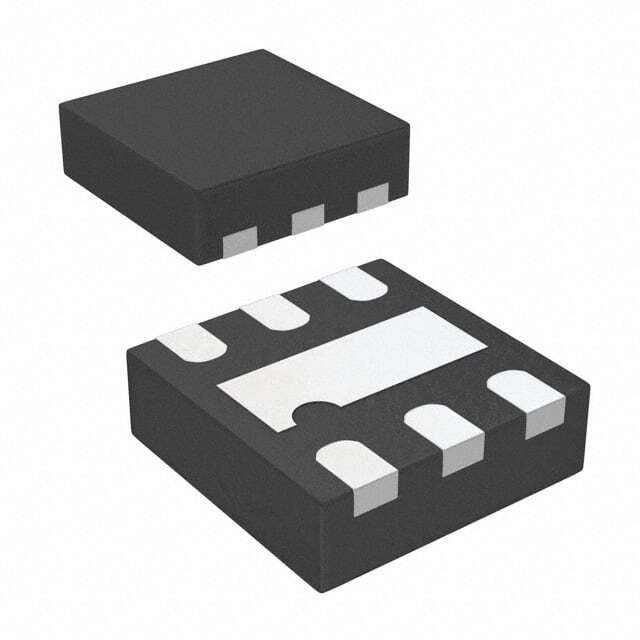

LDO Regulator Pos 2.8V 0.5A 6-Pin UDFN EP T/R

11670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	2.8
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	2.6
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.1@150mA
Line Regulation	0.3%/V
Load Regulation	0.15%(Typ)
Typical Ground Current @ Full Load (mA)	0.09
Junction to Ambient	92.4°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	UDFN EP
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	1.6
Package Width	1.6
PCB changed	6
