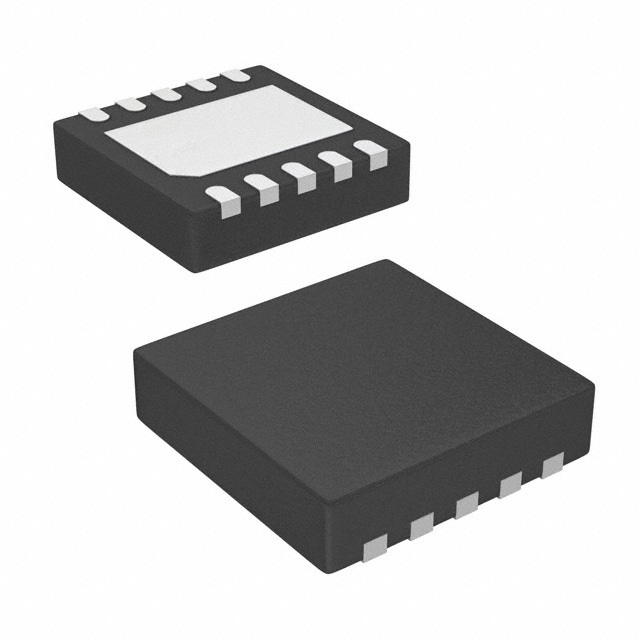

MIC4605-2YMT-TR

SKU: 94302

Manufacturer: Microchip Technology

Driver 1A 2-OUT High and Low Side Half Brdg Non-Inv 10-Pin TDFN EP T/R

1910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	800
Maximum Fall Time (ns)	800
Maximum Propagation Delay Time (ns)	35(Typ)
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	5.5
Operating Supply Voltage-Max (V)	16
Maximum Supply Current (mA)	0.17
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	2.2(Min)
Peak Output Current (A)	1(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Undervoltage Protection
Latch-Up Proof	Yes
Packing Method	Tape and Reel
Original Package	TDFN EP
Pin Count	10
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	2.5
Package Width	2.5
