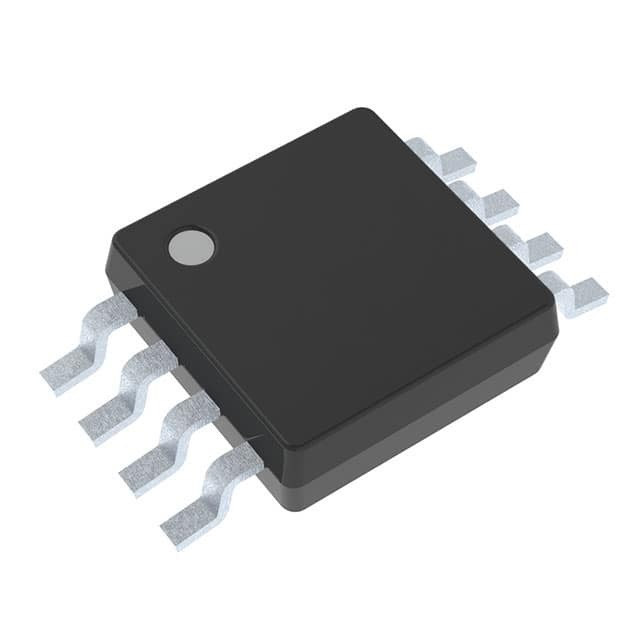

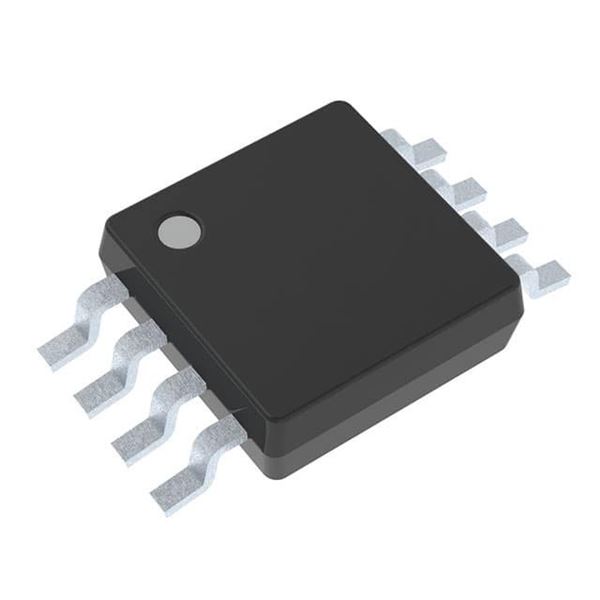

MIC4427YMM

SKU: 119643

Manufacturer: Microchip Technology

Driver 0.025V 1.5A 2-OUT Low Side Non-Inv 8-Pin MSOP Tube

3590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	Low Side
Driver Configuration	Non-Inverting
Number of Drivers	2
Process Technology	DMOS
Number of Outputs	2
Maximum Rise Time (ns)	30
Maximum Fall Time (ns)	20
Maximum Propagation Delay Time (ns)	50
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	18
Maximum Supply Current (mA)	4.5
Typical Input Low Threshold Voltage (V)	1.1
Typical Input High Threshold Voltage (V)	1.4
Reference Voltage (V)	0.025(Max)
Peak Output Current (A)	1.5(Typ)
Output Resistance (Ohm)	6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Latch-Up Proof	Yes
Packing Method	Tube
Pin Count	8
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.92
Package Length	3
Package Width	3
