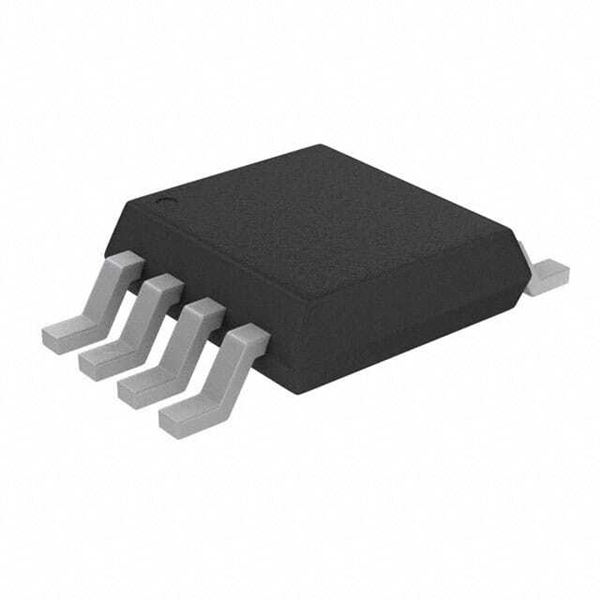

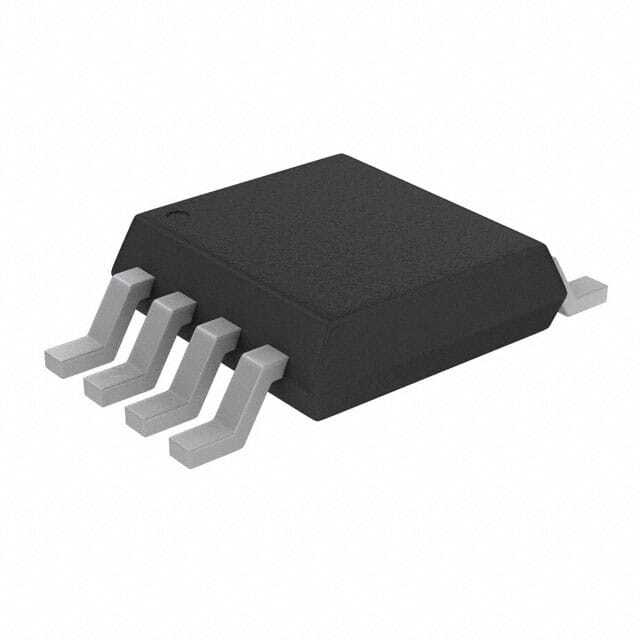

MIC3775BMM-TR

SKU: 84252

Manufacturer: Microchip Technology

LDO Regulator Pos 1.24V to 6V 0.75A 8-Pin MSOP T/R

3710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Process Technology	CMOS
Output Type	Adjustable
Output Voltage (V)	1.24 to 6
Maximum Output Current (A)	0.75(Min)
Minimum Input Voltage (V)	2.25
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.5@750mA
Reference Voltage (V)	1.252
Line Regulation	0.5%
Load Regulation	1%
Maximum Quiescent Current (mA)	15
Typical Ground Current @ Full Load (mA)	7.5
Junction to Ambient	80°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	MSOP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.92
Package Length	3
Package Width	3
