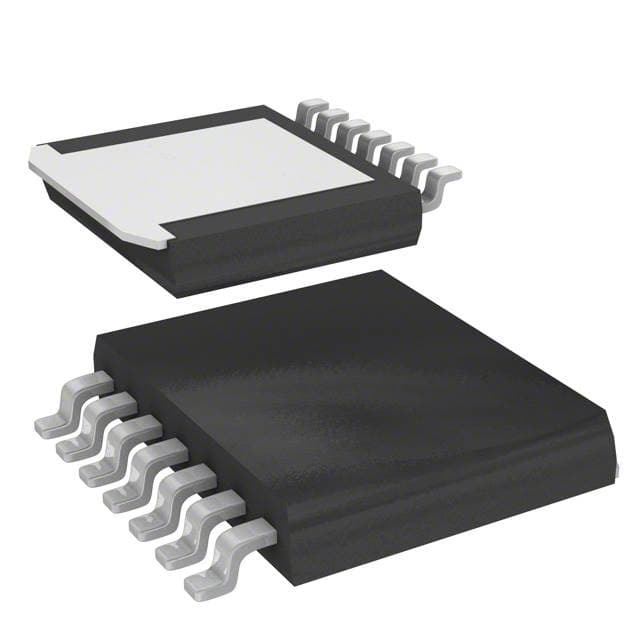

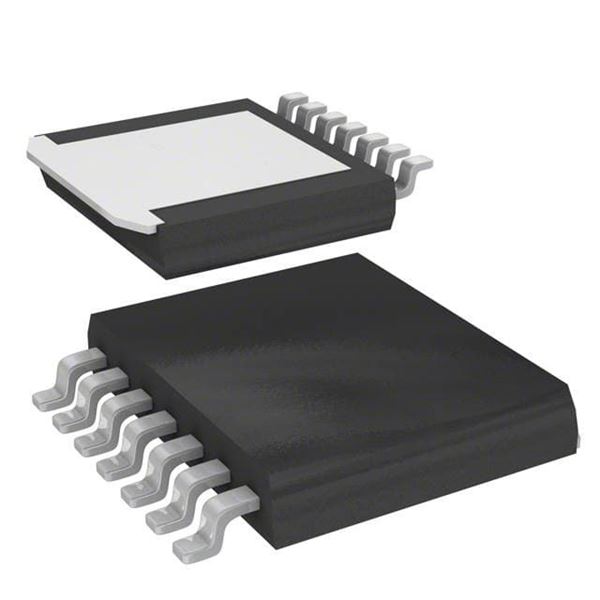

MIC37501-1.5WR-TR

SKU: 119635

Manufacturer: Microchip Technology

LDO Regulator Pos 1.5V 5A 8-Pin(7+Tab) SPAK T/R

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	1.5
Maximum Output Current (A)	5(Min)
Minimum Input Voltage (V)	2.3
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.5@5A
Line Regulation	0.5%
Load Regulation	0.2%(Typ)
Maximum Quiescent Current (mA)	100
Typical Ground Current @ Full Load (mA)	57
Junction to Ambient	38°C/W
Junction to Case	2°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SPAK
Pin Count	8
Standard Package Method	SPAK
Terminal Form	Surface Mount
Package Height	2.03(Max)
Package Length	9.52(Max)
Package Width	8.13(Max)
PCB changed	7
Tab	Tab
