MIC37100-1.5WS

SKU: 84247

Manufacturer: Microchip Technology

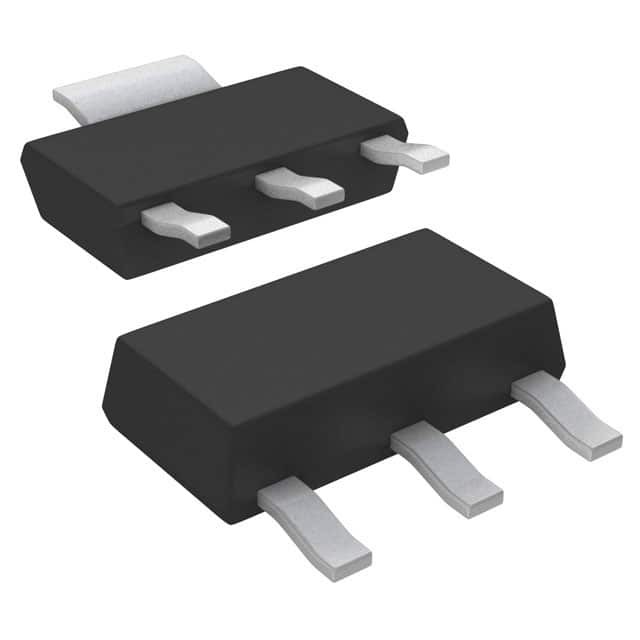

LDO Regulator Pos 1.5V 1A 4-Pin(3+Tab) SOT-223 Tube

80 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	1.5
Maximum Output Current (A)	1(Min)
Minimum Input Voltage (V)	2.25
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.2@100mA
Line Regulation	0.5%
Load Regulation	1%
Maximum Quiescent Current (mA)	25
Typical Ground Current @ Full Load (mA)	11
Junction to Case	15°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	SOT-223
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.6
Package Length	6.5
Package Width	3.5
PCB changed	3
