MIC2940A-12BU

SKU: 23656

Manufacturer: Microchip Technology

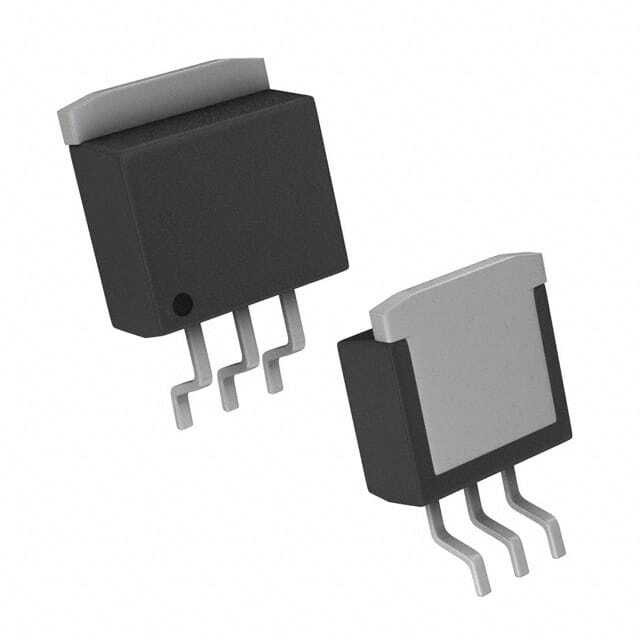

LDO Regulator Pos 12V 1.25A Automotive 4-Pin(3+Tab) TO-263

5840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	12
Maximum Output Current (A)	1.25
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	26
Maximum Dropout Voltage @ Current (V)	0.25@250mA
Line Regulation	0.5%
Load Regulation	0.16%
Maximum Quiescent Current (mA)	0.5
Typical Ground Current @ Full Load (mA)	35
Junction to Case	2°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	TO-263
Pin Count	4
Terminal Form	Surface Mount
Package Height	4.6(Max)
Package Length	10.67(Max)
Package Width	9.17(Max)
PCB changed	3
