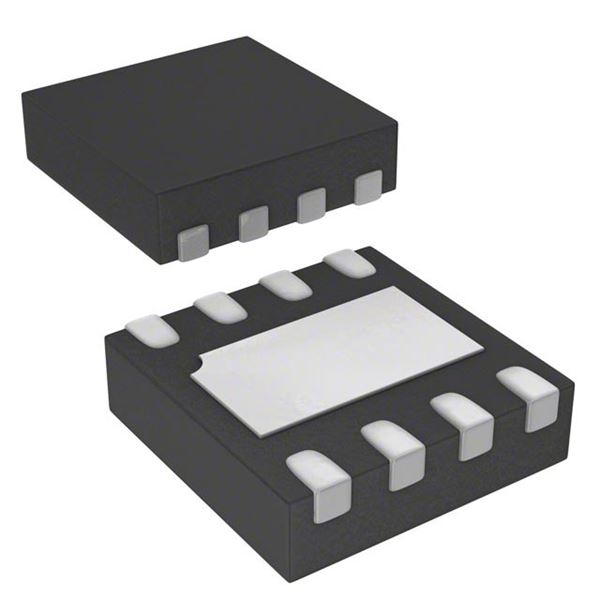

MIC2876-AYMT-T5

SKU: 122708

Manufacturer: Microchip Technology

Conv DC-DC 2.5V to 5.5V Synchronous Step Up Single-Out 2.5V to 5.5V 8-Pin TDFN EP T/R

3750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Up
Output Type	Adjustable
Switching Frequency (kHz)	2000(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	2.5 to 5.5
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	5.5
Typical Switch Current (A)	4.8
Typical Quiescent Current (uA)	109
Line Regulation	0.3%/V(Typ)
Load Regulation	0.2%/A(Typ)
Efficiency (%)	95
Maximum ESD Protection Voltage (kV)	3@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TDFN EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	2
Package Width	2
