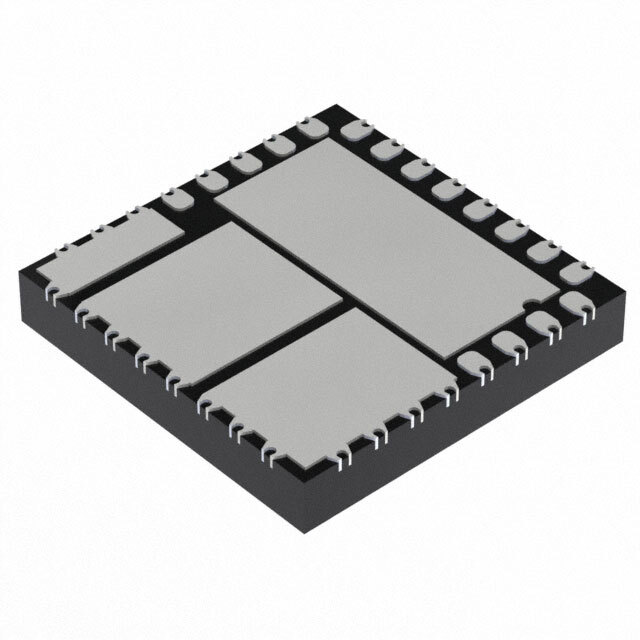

MIC28514T-E/PHA

SKU: 63127

Manufacturer: Microchip Technology

Conv DC-DC 4.5V to 75V Synchronous Step Down Single-Out 0.6V to 32V 5A 32-Pin VQFN EP T/R

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	270 to 800
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 32
Maximum Output Current (A)	5
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	4.5 to 75
Typical Switch Current (A)	6.25
Typical Quiescent Current (uA)	1250
Line Regulation	0.1%(Typ)
Load Regulation	0.04%(Typ)
Efficiency (%)	95
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	VQFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.83
Package Length	6
Package Width	6
PCB changed	32
