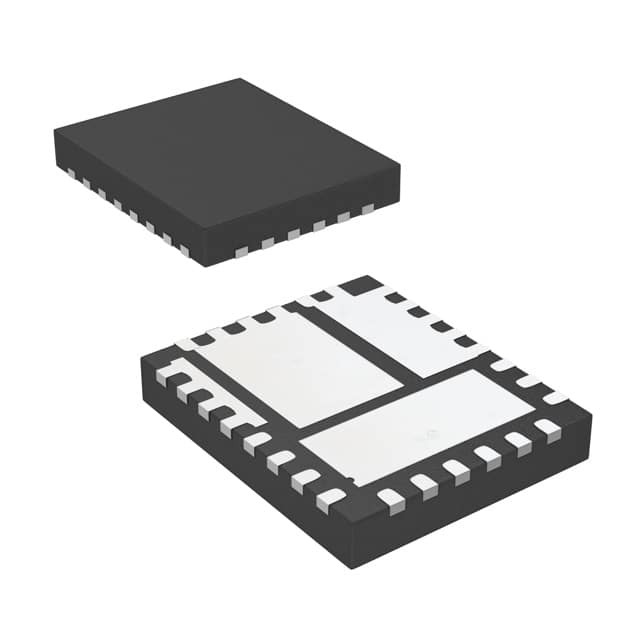

MIC26950YJL-TR

SKU: 27650

Manufacturer: Microchip Technology

Conv DC-DC 4.5V to 26V Step Down Single-Out 0.8V to 5.5V 12A 28-Pin QFN EP T/R

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	300(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 5.5
Maximum Output Current (A)	12
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	26
Operating Supply Voltage (V)	4.5 to 26
Typical Quiescent Current (uA)	1400
Line Regulation	0.1%(Typ)
Load Regulation	0.2%(Typ)
Efficiency (%)	95
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	28
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	6
Package Width	5
PCB changed	28
