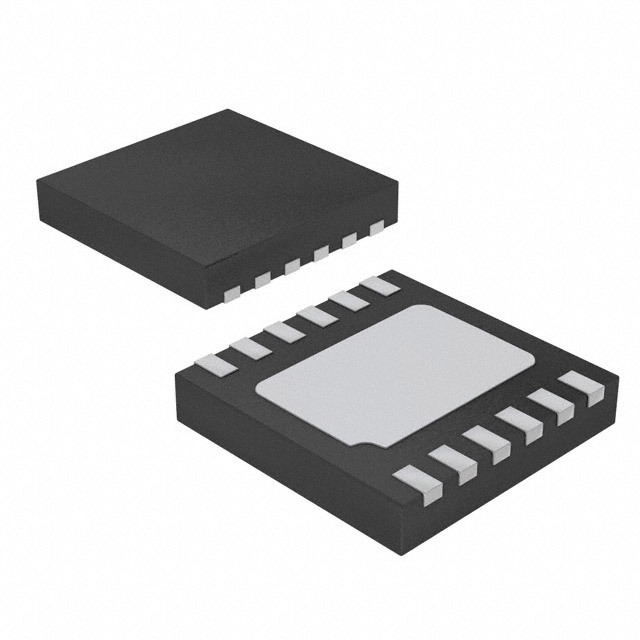

MIC23303YML-T5

SKU: 52145

Manufacturer: Microchip Technology

Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.65V to 3.6V 3A 12-Pin DFN EP T/R

2790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	4000(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.65 to 3.6
Maximum Output Current (A)	3
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.7 to 5.5
Typical Switch Current (A)	6.5
Typical Quiescent Current (uA)	24
Line Regulation	0.3%/V(Typ)
Load Regulation	0.7%(Typ)
Efficiency (%)	93
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	12
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	3
Package Width	3
PCB changed	12
