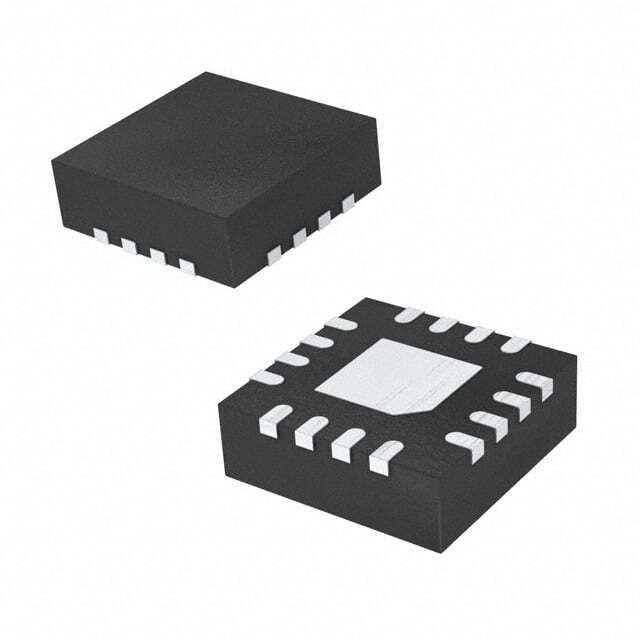

MIC2102YML-TR

SKU: 136918

Manufacturer: Microchip Technology

DC/DC Cntrlr Single-OUT Step Down 600kHz 16-Pin QFN EP T/R

1730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8471.80.10.00
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.8 to 24
Maximum Switching Frequency (kHz)	600
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	38
Operating Supply Voltage (V)	4.5 to 38
Maximum Supply Current (mA)	2.1
Typical Quiescent Current (mA)	2.1
Typical Gate Driver Pull Up Resistance (Ohm)	1.8/2.1
Typical Gate Driver Pull Down Resistance (Ohm)	1.2/1.8
Minimum Switching Frequency (kHz)	200
Synchronous Rectifier	Yes
Synchronous Clock	No
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	16
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	3
Package Width	3
