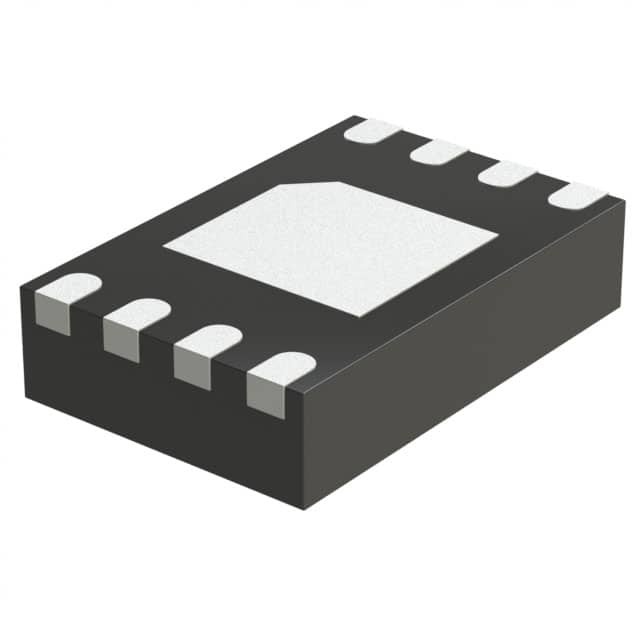

MCP6H72T-E/MNY

SKU: 13459

Manufacturer: Microchip Technology

Op Amp Dual GP R-R O/P ±6V/12V Automotive 8-Pin TDFN EP T/R

1580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	4@12V
Minimum Single Supply Voltage (V)	3.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±1.75
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±6
Maximum Input Offset Current (uA)	0.000001(Typ)@12V
Typical Input Bias Current (uA)	0.00001@12V
Maximum Input Bias Current (uA)	0.025@12V@125C
Maximum Quiescent Current (mA)	0.12@12V
Typical Output Current (mA)	65(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	2@12V
Typical Input Noise Voltage Density (nV/rtHz)	28@12V
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0019@12V
Minimum PSRR (dB)	82
Minimum CMRR (dB)	76
Minimum CMRR Range (dB)	75 to 80
Typical Gain Bandwidth Product (MHz)	2.7
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	DFN
Original Package	TDFN EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	2
Package Width	3
PCB changed	8
