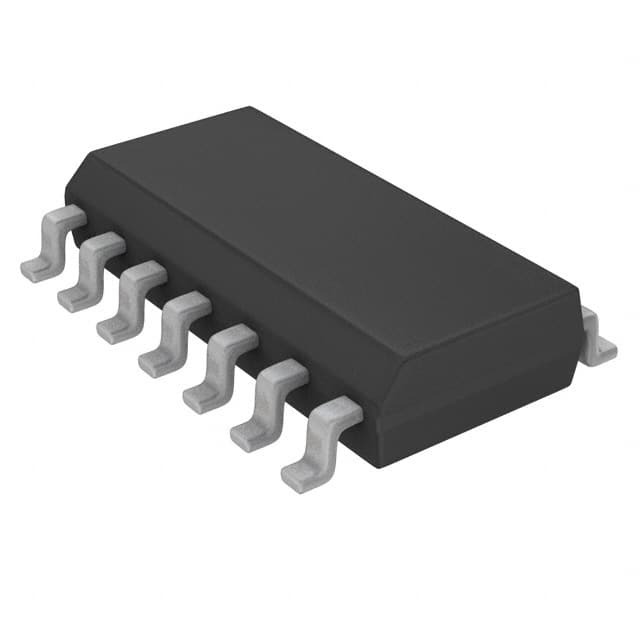

MCP6H04-E/SL

SKU: 27613

Manufacturer: Microchip Technology

Op Amp Quad GP R-R O/P ±8V/16V Automotive 14-Pin SOIC N Tube

8940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Unknown
PPAP	Unknown
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Output
Output Type	CMOS
Maximum Input Offset Voltage (mV)	3.5@16V
Minimum Single Supply Voltage (V)	3.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	16
Minimum Dual Supply Voltage (V)	±1.75
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±8
Maximum Input Offset Current (uA)	0.000001(Typ)@16V
Typical Input Bias Current (uA)	0.00001@16V
Maximum Input Bias Current (uA)	0.025@16V@125C
Maximum Quiescent Current (mA)	0.64@5V
Typical Output Current (mA)	65(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	0.8@16V
Typical Input Noise Voltage Density (nV/rtHz)	35@16V
Typical Voltage Gain (dB)	115
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0019@16V
Minimum PSRR (dB)	87
Minimum CMRR (dB)	78
Minimum CMRR Range (dB)	75 to 80
Typical Gain Bandwidth Product (MHz)	1.2
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	SOIC N
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	8.65
Package Width	3.9
PCB changed	14
