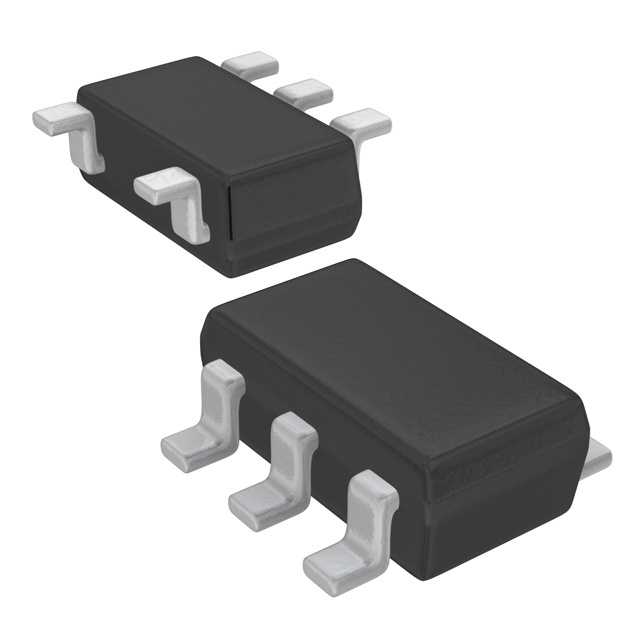

MCP6561T-E/LT

SKU: 91200

Manufacturer: Microchip Technology

Comparator Single R-R I/P 5.5V Automotive 5-Pin SC-70 T/R

3030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Manufacturer Type	Low Power Comparator
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input
Process Technology	CMOS
Typical CMRR (dB)	66
Typical PSRR (dB)	70
Maximum Propagation Delay Time (ns)	80
Output Type	Push-Pull
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	10@5.5V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Bias Current (uA)	0.000001(Typ)@5.5V
Typical Output Current (mA)	50(Max)
Maximum Quiescent Current (mA)	0.13@5.5V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	5
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2
Package Width	1.25
