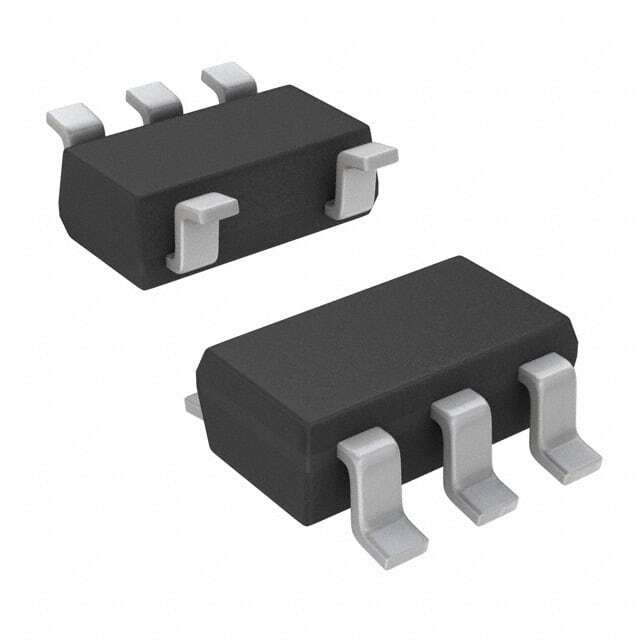

MCP6406T-H/OT

SKU: 105347

Manufacturer: Microchip Technology

Op Amp Single GP R-R I/O 6V 5-Pin SOT-23 T/R

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Unknown
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	4.5@6V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	6
Maximum Input Offset Current (uA)	0.000001(Typ)@6V
Maximum Input Bias Current (uA)	0.0001@6V
Typical Output Current (mA)	30(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	0.5@6V
Typical Input Noise Voltage Density (nV/rtHz)	28@6V
Typical Voltage Gain (dB)	110
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@6V
Minimum PSRR (dB)	63
Minimum CMRR (dB)	56
Minimum CMRR Range (dB)	50 to 60
Typical Gain Bandwidth Product (MHz)	1
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	2.9
Package Width	1.6
PCB changed	5
