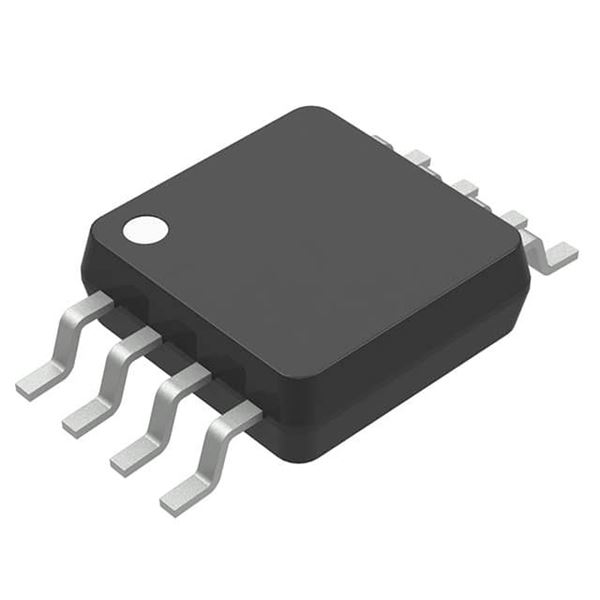

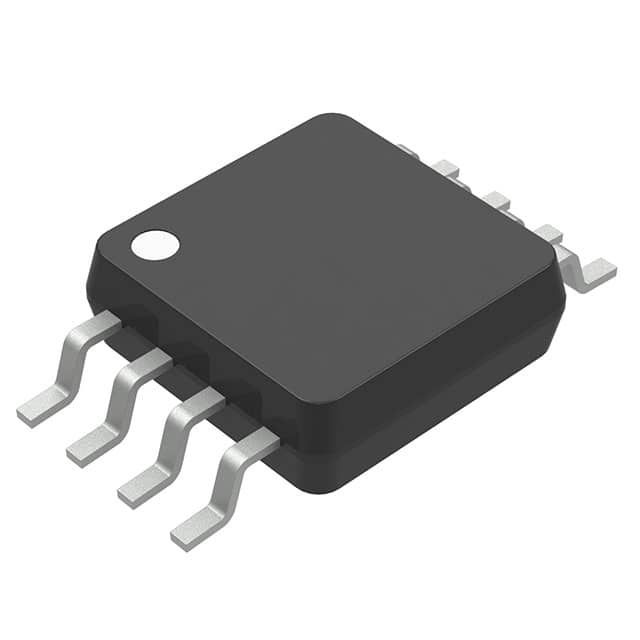

MCP6291-E/MS

SKU: 84182

Manufacturer: Microchip Technology

Op Amp Single GP R-R I/O 5.5V Automotive 8-Pin MSOP Tube

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	3@5.5V
Minimum Single Supply Voltage (V)	2.4
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	6
Maximum Input Offset Current (uA)	0.000001(Typ)@5.5V
Maximum Input Bias Current (uA)	0.000001@5.5V
Typical Output Current (mA)	30(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	7@5.5V
Typical Input Noise Voltage Density (nV/rtHz)	8.7@5.5V
Typical Voltage Gain (dB)	110
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.003@5.5V
Minimum PSRR (dB)	70
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	10
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Original Package	MSOP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
