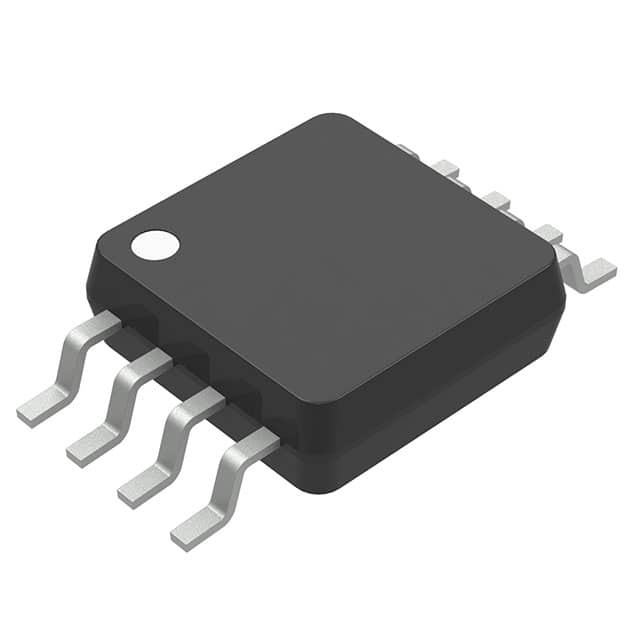

MCP617-I/MS

SKU: 41776

Manufacturer: Microchip Technology

Op Amp Dual Micropower Amplifier R-R O/P 5.5V 8-Pin MSOP Tube

8190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Micropower Amplifier
Manufacturer Type	Micropower Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	BiCMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	0.15@5.5V
Minimum Single Supply Voltage (V)	2.3
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.00015(Typ)@5.5V
Maximum Input Bias Current (uA)	0.005@5.5V
Maximum Quiescent Current (mA)	0.05@5.5V
Typical Output Current (mA)	30(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	0.08@5.5V
Typical Input Noise Voltage Density (nV/rtHz)	32@5.5V
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.07@5.5V
Minimum PSRR (dB)	86
Minimum CMRR (dB)	80
Minimum CMRR Range (dB)	80 to 85
Typical Gain Bandwidth Product (MHz)	0.19
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	MSOP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
