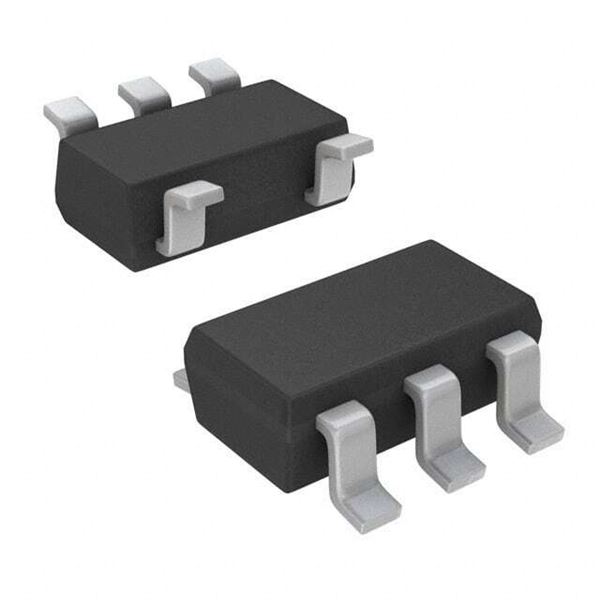

MCP606T-I/OT

SKU: 63073

Manufacturer: Microchip Technology

Op Amp Single Micropower Amplifier R-R O/P 6V Automotive 5-Pin SOT-23 T/R

8900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Yes
PPAP	Yes
Type	Micropower Amplifier
Manufacturer Type	Micropower Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	0.25@5.5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	6
Maximum Input Offset Current (uA)	0.000001(Typ)@5.5V
Typical Input Bias Current (uA)	0.000001@5.5V
Maximum Quiescent Current (mA)	0.025@5.5V
Typical Output Current (mA)	30(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	0.08@5.5V
Typical Input Noise Voltage Density (nV/rtHz)	38@5.5V
Typical Voltage Gain (dB)	121
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.003@5.5V
Minimum PSRR (dB)	80
Minimum CMRR (dB)	75
Minimum CMRR Range (dB)	75 to 80
Typical Gain Bandwidth Product (MHz)	0.155
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	2.9
Package Width	1.6
PCB changed	5
