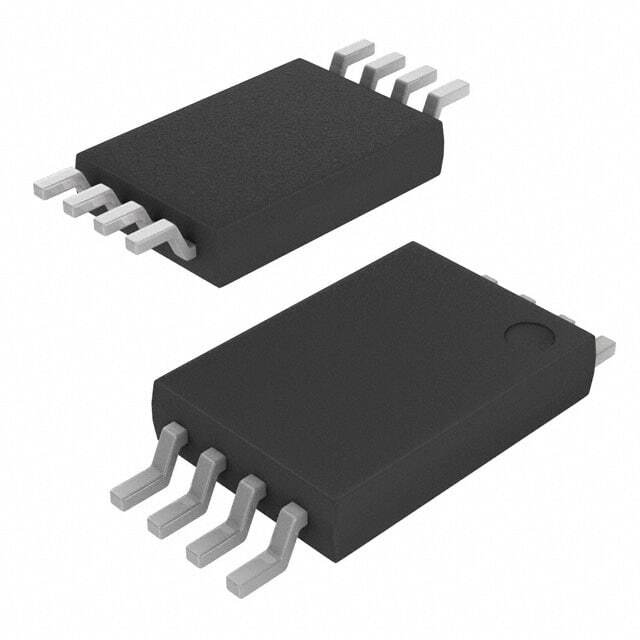

MCP47FEB12A0T-E/ST

SKU: 105331

Manufacturer: Microchip Technology

DAC 2-CH Resistor-String 10-bit 8-Pin TSSOP T/R

1190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Resistor-String
Resolution	10bit
Number of DAC Channels	2
Number of Outputs per Chip	2
Maximum Settling Time (us)	6(Typ)
Digital Interface Type	Serial (2-Wire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Supply
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	700
Integral Nonlinearity Error	±1.5LSB
Full Scale Error	18LSB
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Extended
Original Package	TSSOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	3
Package Width	4.4
PCB changed	8
