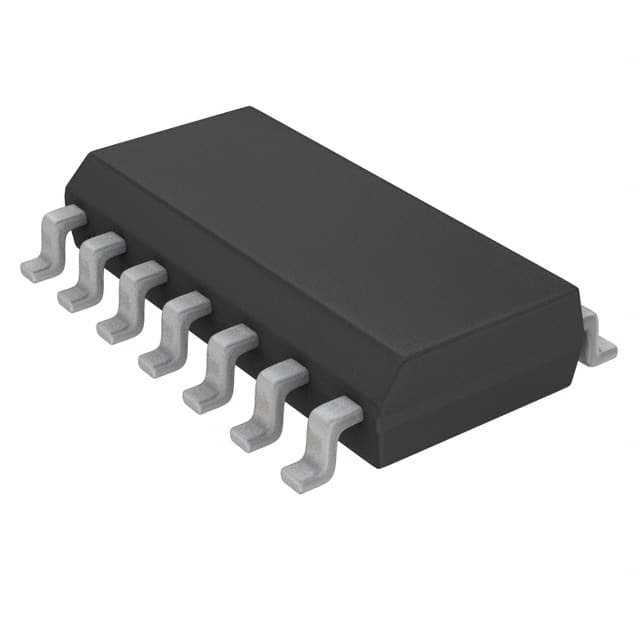

MCP3424T-E/SL

SKU: 73154

Manufacturer: Microchip Technology

4-Channel Single ADC Delta-Sigma 3.75sps 18-bit Serial Automotive 14-Pin SOIC N T/R

3430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	18bit
Number of ADCs	1
Number of Input Channels	4
Sampling Rate	3.75sps
Digital Interface Type	Serial (2-Wire, I2C)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±2.048V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Integral Nonlinearity Error	35ppm of FSR
Full Scale Error	0.35%FSR
No Missing Codes (bit)	18
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	8.65
Package Width	3.9
PCB changed	14
