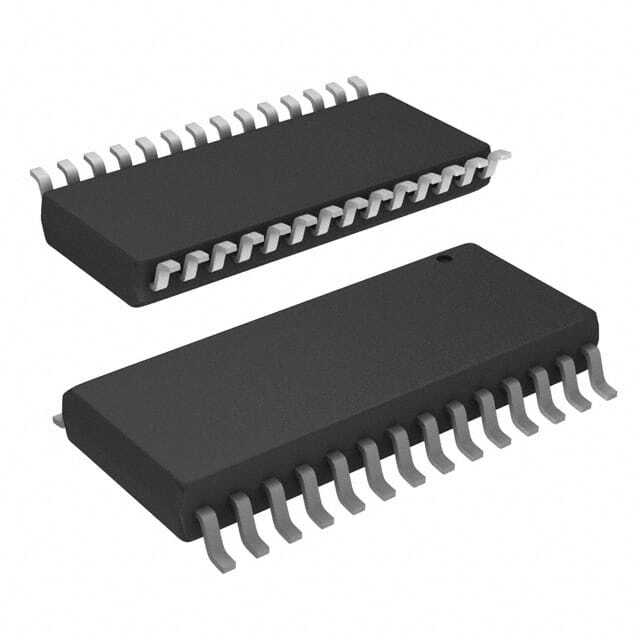

MCP23S18-E/SO

SKU: 155035

Manufacturer: Microchip Technology

SPI Interface 10000kHz 5.5V Automotive 28-Pin SOIC W Tube

1210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Number of I/Os	16
Number of Addresses	8
Manual Reset	Yes
Interface Type	SPI
Interface Speed (kHz)	10000
Interrupt Output	Yes
Output Type	Open Drain
Operating Supply Voltage-Min (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Maximum Sink Current per Bit (mA)	25
Maximum Quiescent Current (uA)	6
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	SOIC W
Pin Count	28
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.05(Min)
Package Length	17.9
Package Width	7.5
PCB changed	28
