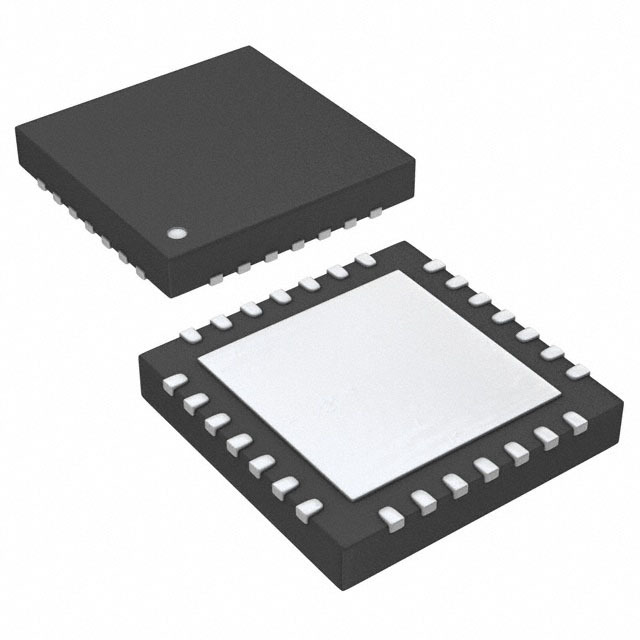

MCP23S17T-E/ML Microchip Technology

MCP23S17T-E/ML

SKU: 129757

Manufacturer: Microchip Technology

SPI Interface 10000kHz 5.5V 28-Pin QFN EP T/R

Download sample

Request Free Samples

8970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of I/Os	16
Number of Addresses	8
Manual Reset	Yes
Interface Type	SPI
Interface Speed (kHz)	10000
I2C Bus Interface Mode	Standard Mode
Interrupt Output	Yes
Output Type	Quasi Bidirectional
Operating Supply Voltage-Min (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	1
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	6
Package Width	6
PCB changed	28
